Optoelectronic Level Switches

FO-01optoelectronic level switch for vertical and horizontal mounting
FO-02optoelectronic level switch with adjustable insertion length (runs out)
FO-03optoelectronic level switch with under pressure changeable electronic unit
FO-04optoelectronic level switch for general applications
FO-05optoelectronic level switch for higher media temperatures

Please click on the highlighted row to display the related datasheet.

Profimess GmbH · Twischlehe 5 · D-27580 Bremerhaven ·  Deutschland
Tel: +49 (0)471 9824-151 · Fax: +49 (0)471 9824-152

FO-01
optoelectronic level switch for vertical and horizontal mounting
Technical specifications:

Media: liquids
Wetted: stainless steel, glass
max. Pressure: 50 bar
max. Temperature: 135°C
Process connection: thread
Supply: 24 VDC
Output: 1 PNP switching output

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...

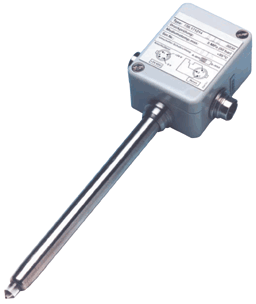

FO-02
optoelectronic level switch with adjustable insertion length
Technical specifications:

Media: liquids
Wetted: stainless steel, glass
max. Pressure: 50 bar
max. Temperature: 95°C
Process connection: compression fitting
Supply: 24 VDC
Output: 1 relais 230 VAC, 3A

Download:
PDF datasheet PDF Datei zum Download
Leftclick
on icon to open,
Rightclick
on icon to save as...
FO-03
optoelectronic level switch with under pressure changeable electronic unit
Technical specifications:

Media: liquids
Wetted: steel, glass
max. Pressure: up to 42 bar
max. Temperature: 120°C
Process connection: thread
Supply: 110...230 VAC or 24 VDC
Output: 1 relais up to 250 VAC, up to 7 A, up to 1750 VA
Protection class: IP54 in mounted condition

Download:
PDF datasheet PDF Datei zum Download
Leftclick
on icon to open,
Rightclick
on icon to save as...
FO-04
optoelectronic level switch for general applications
Technical specifications:

Media: liquids
Wetted: stainless steel, glass
max. Pressure: up to 25 bar
max. Temperature: 100°C
Process connection: thread
Supply: 12...32 VDC
Output: 1 PNP up to 40 mA
Protection class: IP65 with mounted counter plug

Download:
PDF datasheet PDF Datei zum Download
Leftclick
on icon to open,
Rightclick
on icon to save as...
FO-05
optoelectronic level switch for higher media temperatures
Technical specifications:

Media: liquids
Wetted: stainless steel, glass
max. Pressure: up to 25 bar
max. Temperature: 150°C
Process connection: thread
Supply: 12...32 VDC
Output: 1 PNP up to 40 mA
Protection class: IP65 with mounted counter plug

Download:
PDF datasheet PDF Datei zum Download
