Float Switches

FS-01rugged suspension float switch
FS-01EXrugged suspension float switch with ATEX approval
FS-03low-cost suspension float switch
FS-05extra slender suspension float switch
FS-08suspended float switch with internal weight
FS-16Teflon float switch for side mounting
FS-17stainless steel float switch for side mounting
FS-10suspension float switch for bulk goods
FS-02high pressure float switch for horizontal mounting
>>>for more products click on this row
<<<for previous products click on this row
FS-04rugged float switch for horizontal mounting with shipping approval
LS-10Nfloat switch for vertical mounting
LS-10Kplastic float switch for vertical mounting from PVC, PP or PVDF (model is replaced by LS-10N)
LS-11Nrugged float switch for horizontal mounting (model is replaced by LS-10N)
LS-14flap float switch for horizontal mounting from plastics
LS-15flap float switch for horizontal mounting made of stainless steel
LS-15Pflap float switch for horizontal mounting made of stainless steel with plug connection
LS-16miniature float switch for vertical mounting from plastics
>>>for more products click on this row
<<<for previous products click on this row
LS-17miniature float switch for vertical mounting made of stainless steel
GH-01enclosure for outdoor wiring of level switches

Please click on the highlighted row to display the related datasheet.

Profimess GmbH · Twischlehe 5 · D-27580 Bremerhaven ·  Deutschland
Tel: +49 (0)471 9824-151 · Fax: +49 (0)471 9824-152

FS-01
rugged suspension float switch
Technical specifications:

Media: liquids with specific weight from 0.7 g/ccm
Wetted: float PP, cable Neopren
max. Pressure: 3.5 bar
max. Temperature: 85°C
Switching angle: +/- 25° horizontal
Switching load: 16 A resistive at 250 VAC or 48 VDC
Output: 1 change-over microswitch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-01EX
rugged suspension float switch with ATEX approval
Technical specifications:

Media: liquids, specific weight > 0.8 g/ccm
Wetted: coated with HR-HY (Hypalon)
max. Pressure: 4 bar
max. Temperature: 90°C
ATEX-approval: -20°C...+70°C for T6
Switching angle: +/- 25° horizontal
Switching load none-EX: 16 A resistive at 250 VAC or 48 VDC
Switching load ATEX-version: 24 V AC/DC, 10 mA; 12 V AC/DC, 100 mA
Output: 1 change-over microswitch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-03
low-cost suspension float switch
Technical specifications:

Media: liquids with specific weight from 0.8 g/ccm
Wetted: float from PP, cable from PVC or Neopren
max. Pressure: 1 bar
max. Temperature: 50°C
Switching angle: +/- 45° horizontal
Switching load: 10 A resistive at 250 VAC
Output: 1 change-over microswitch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-05
extra slender suspension float switch
Technical specifications:

Media: liquids with specific weight from 0.75 g/ccm
Wetted: float PP, cable Neopren
Diameter: 29 mm (fits through 1"-bushings)
max. Pressure: 5.5 bar
max. Temperature: 85°C
Switching angle: +/- 20° horizontal
Switching load: 12 A resistive or 6 A inductive at 250 VAC
Output: 1 change-over microswitch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-08
suspended float switch with internal weight
Technical specifications:

Media: liquids, specific weight from 0.95 g/ccm
Wetted: float PP, cable PVC
Diameter: 70 mm or 100 mm
max. Pressure: 2.0 or 3.5 bar
max. Temperature: 70°C
Switching angle: app. 45° vertical
Switching load 100 mmm version: 10 A res., 4 A ind. up to 250 V AC/DC
Switching load 70 mmm version: 16 A res., 6 A ind. up to 48 V AC/DC or up to 250 VAC
Output: 1 change-over microswitch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-16
Teflon float switch for side mounting
Technical specifications:

Media: liquids with specific weight from 0.75 g/ccm
Wetted: float PTFE, cable Silicone or FEP
Diameter: 55 mm (fits through 2"-bushings)
max. Pressure: 1 bar
max. Temperature: 150°C
Switching angle: +/- 20° horizontal
Switching load: 0.01...60 VA / W at 4...250 VAC or 4...150 VDC
Output: 1 change-over REED-switch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-17
stainless steel float switch for side mounting
Technical specifications:

Media: liquids with specific weight from 0.80 g/ccm
Wetted: stainless steel
Diameter: 80 mm or 132 mm
max. Pressure: 6 bar or 15 bar
max. Temperature: 150°C
Switching angle: +/- 20° horizontal
Switching load: 0.01...60 VA / W at 4...250 VAC or 4...150 VDC
Output: 1 change-over REED-switch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-10
suspension float switch for bulk goods
Technical specifications:

Media: bulk goods
Wetted: float PP, cable Neopren
ATEX-version: completely coated with HR-HY (Hypalon)
max. Pressure: atmosphere
max. Temperature: 85°C
ATEX-version: -20°C...+70°C for T6
Switching angle: +/- 10° vertical
Switching load: depends on version
Output: 1 change-over microswitch

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-02
high pressure float switch for horizontal mounting
Technical specifications:

Media: liquids with specific weight from 0.4 g/ccm
Wetted: stainless steel, float from titanium for low specific weights
max. Pressure: up to PN250
max. Temperature: up to 400°C
Process connection: flange
Switching load: depends on output version
Output: SPDT, REED or NAMUR

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
FS-04
rugged float switch for horizontal mounting with shipping approval
Technical specifications:

Media: liquids with specific weight from 0.7 g/ccm
Wetted: stainless steel
max. Pressure: PN25
max. Temperature: up to 250°C
Process connection: flange or thread
Switching load: 10 A at 250 VAC or 0.6 A at 220 VDC
Output: microswitch with NO and NC function

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
LS-10N
float switch for vertical mounting
Technical specifications:

Media: liquids with specific weight from 0.4 g/ccm
Wetted: stainless st., PP, NBR, PVDF, ECTFE, PVC, PFA, Alloy C, Titanium
Material combination: customized
max. Pressure: up to 150 bar
max. Temperature: up to 250°C
Process connection: flange or thread
Switching load: depends on version
Output: up to 6(4) REED-switches NC, NO, (change-over)

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
LS-10K
plastic float switch for vertical mounting from PVC, PP or PVDF
Technical specifications:

Media: liquids with specific weight from 0.431 g/ccm
Wetted: PVC, PP or PVDF
Insertion length: up to 5 meter
max. Pressure: 3 bar
max. Temperature: up to 100°C
Process connection: flange or thread
Switching load: depends on version
Output: up to 6(4) REED-switches NC, NO, (change-over)

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
LS-11N
rugged float switch for horizontal mounting
Technical specifications:

Media: liquids with specific weight from 0.58 g/ccm
Wetted: BUNA, stainless steel (brass on request)
max. Pressure: 40 bar
max. Temperature: up to 300°C
Process connection: flange or thread
Switching load: depends on version
Output: up to 6(4) REED-switches NC, NO, (change-over)

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
LS-14
flap float switch for horizontal mounting from plastic
Technical specifications:

Media: liquids with specific weight from 0.8 g/ccm
Option: lower specific weights
Wetted: PP or Nylon
max. Pressure: 2 bar
max. Temperature: up to 110°C (Nylon)
Process connection: thread
Switching load within CE area: 25 VA, 50 VAC/DC, 0.5 A
Output: REED-switch
El. connection: 0.3 m cord

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
LS-15
flap float switch for horizontal mounting from stainless steel
Technical specifications:

Media: liquids with specific weight from 0.8 g/ccm
Wetted: stainless steel
max. Pressure: 5 bar
max. Temperature: up to 120°C
Option: HT up to 180°C
Process connection: thread
Switching load within CE area: 25 VA, 50 VAC/DC, 0.5 A
Output: REED-switch
El. connection: 0.5 m cord

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
LS-15P
flap float switch for horizontal mounting from stainless steel with plug connection
Technical specifications:

Media: liquids with specific weight from 0.8 g/ccm
Wetted: stainless steel
max. Pressure: 5 bar
max. Temperature: up to 120°C
Process connection: thread
Switching load within CE area: 25 VA, 50 VAC/DC, 0.5 A
Output: REED-switch
El. connection: plug

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
LS-16
miniature float switch for vertical mounting from plastic
Technical specifications:

Media: liquids with specific weight from 0.8 g/ccm
Wetted: PP and stainless steel
max. Pressure: atmospheric
max. Temperature: up to 80°C
Process connection: thread for inner mounting
Switching load within CE area: 50 V AC/DC, 0.5 A, 25 VA
Switching load outside CE area: 300 V AC/DC, 0.5 A, 50 VA
Output: REED-switch
El. connection: 0.3 m PVC cord

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...

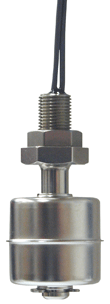

LS-17
miniature float switch for vertical mounting made of stainless steel
Technical specifications:

Media: liquids with specific weight from 0.7 g/ccm
Wetted: stainless steel
max. Pressure: 10 bar
max. Temperature: up to 120°C
Process connection: thread for inner mounting
Switching load within CE area: 50 V AC/DC, 0.5 A, 25 VA
Switching load outside CE area: 300 V AC/DC, 0.5 A, 50 VA
Output: REED-switch
El. connection: 0.35 m IRRAX cord

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
GH-01
enclosure for outdoor wiring of level switches
Technical specifications:

Protection class housing: IP66
Protection class cable glands: IP68 up to 5 bar
Material housing: polyester
Material gasket: polyuretan
max. Temperature: -40°C up to 90°C
Cable glands: 2 or 3 pieces M16 x 1.5
Cable diameter: 6...10 mm

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
