Calorimetric Flow Meters and Switches

DT-03calorimetric flow meter and switch for hydrous media
DT-03Ncalorimetric flow meter and switch for very low flow volumes
DT-06calorimetric flow switch for air

Please click on the highlighted row to display the related datasheet.

Profimess GmbH · Twischlehe 5 · D-27580 Bremerhaven ·  Deutschland
Tel: +49 (0)471 9824-151 · Fax: +49 (0)471 9824-152

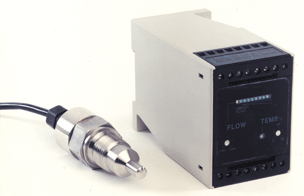

DT-03
calorimetric flow meter and switch for hydrous media
Technical specifications:

Media: hydrous liquids
Wetted: stainless steel
max. Pressure: 100 bar, 200 bar on request
max. Temperature: 70°C, 120°C on request
Process connection: thread
Nominal widths: to screw in pipes
Switching load: max. 24 VDC, 100 mA
Supply: 24 VDC
Output: transistor switch and/or 4...20 mA or 0...10 VDC
Option: Frequency output

Download:
PDF datasheet PDF download file
Leftclick
on icon to open,
Rightclick
on icon to save as...
DT-03N
calorimetric flow meter and switch for very low flow volumes
Technical specifications:

Media: hydrous liquids
Wetted: stainless steel
max. Pressure: 10 bar
max. Temperature: 70°C
Process connection: plain pipe
Nominal widths: DN6 up to DN10
Switching load: max. 24 VDC, 100 mA
Supply: 24 VDC
Output: transistor switch and/or 4...20 mA or 0...10 VDC
Option: Frequency output

Download:
PDF datasheet PDF Datei zum Download
Leftclick
on icon to open,
Rightclick
on icon to save as...
DT-06
calorimetric flow switch for air
Technical specifications:

Media: air
Wetted: PBT, titanium
max. Pressure: 1 bar
max. Temperature: -10°C up to +50°C
Process connection: mounting clamp
Insertion depth: 32 mm up to 120 mm
Operation range: 100...1000 cm/s/s
Switching load: max. 3 A at 30 VDC or 250 VAC
Supply: 24 V AC/DC or 90...250 V AC/DC
Output: NO relais

Download:
PDF datasheet PDF Datei zum Download
