Siemens Radar Level Meters
| PROBE LR | non-invasive radar level meter for liquids in storage containers |

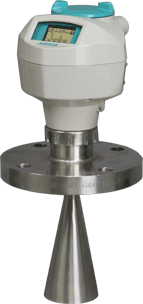

| LR 200 | non-invasive radar level meter for liquids in storage and process containers |

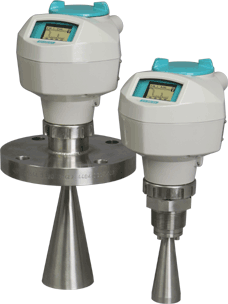

| LR 250 | non-invasive radar level meter for liquids in storage and process containers with stirring units, steam appearance, high temperatures or low DK |

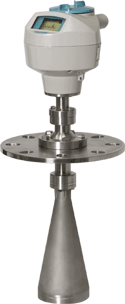

| LR 260 | non-invasive radar level meter for cement, plastics, cereals, flour or coal |
| LR 400 | non-invasive radar level meter for light liquids (e.g. LPG) in storage containers |

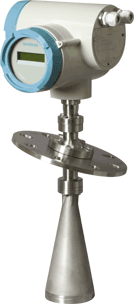

| LR 460 | non-invasive radar level meter for bulk goods with strong dust appearance e.g. flue ash |

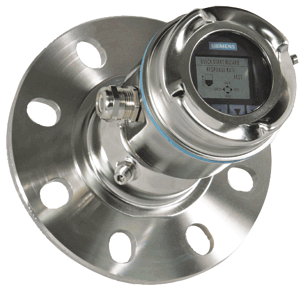

| LR 560 | non-invasive radar level meter for cement, plastics, cereals, flour or coal in narrow containers |
| LG 200 | guided wave radar level meter for level and interface detection even at high pressures and temperatures |
Please click on the highlighted row to display the related datasheet.
Profimess GmbH · Twischlehe 5 · D-27580 Bremerhaven ·
Germany
Tel: +49 (0)471 9824-151 · Fax: +49 (0)471 9824-152
|
Range at ideal conditions: 0.3...20 m
Frequency and principle: 5.8 GHz, Puls
Accuracy: 0.1 % v. FS. or 10 mm
max. Pressure: 3 bar
max. Temperature: -40°C...+80°C
Outputs: 4...20 mA, HART, SIMATIC PDM
Supply: 24 VDC
Approvals: CE, C-Tick, KC, Lloyds Register, ABS, FCC, Industry Canada, R&TTE, ATEX, CSA, FM, INMETRO, GOST, IECEx, ANZEx, TIIS
| PDF datasheet |
 |
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Range at ideal conditions: 0.4...20 m
Frequency and principle: 5.8 GHz, Puls
Accuracy: 0.1 % v. FS. or 10 mm
max. Pressure: up to 40 bar
max. Temperature: -40°C...+200°C
Outputs: 4...20 mA, HART, PROFIBUS PA
Supply: 24 VDC
Approvals: CE, C-Tick, KC, Lloyds Register, ABS, FCC, Industry Canada, R&TTE, ATEX, CSA, FM, INMETRO, GOST, IECEx, ANZEx, TIIS, NEPSI
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Range at ideal conditions: 0.05...20 m
Frequency and principle: 25 GHz, Puls
Accuracy: 5 mm
max. Pressure: up to 40 bar
max. Temperature: -40°C...+200°C
Outputs: 4...20 mA, HART, PROFIBUS PA
Supply: 24 VDC
Approvals: CE, C-Tick, KC, Lloyds Register, ABS, BV, FCC, Industry Canada, R&TTE, ATEX, CSA, FM, INMETRO, GOST, IECEx, ANZEx, TIIS, NEPSI, SIL-2
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Range at ideal conditions: up to 30 m
Frequency and principle: 25 GHz, Puls
Accuracy: up to 0.1 % FS. or 10 mm
max. Pressure: up to 3 bar
max. Temperature: -40°C...+200°C
Outputs: 4...20 mA, HART, PROFIBUS PA, SIMATIC PDM
Supply: 24 VDC
Approvals: CE, C-Tick, KC, FCC, Industry Canada, R&TTE, ATEX, CSA, FM, INMETRO, GOST, IECEx
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Range at ideal conditions: 0.35...50 m
Frequency and principle: 25 GHz, FMCW
Accuracy: up to 5 mm in range 2...10 m, up to 15 mm in range 10...50 m
max. Pressure: up to 40 bar
max. Temperature: -40°C...+250°C
Outputs: 4...20 mA, HART, PROFIBUS PA
Supply: 24 VDC or 100...230 VAC
Approvals: CE, C-Tick, KC, Lloyds Register, ABS, FCC, Industry Canada, R&TTE, ATEX, CSA, FM, GOST
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Range at ideal conditions: up to 100 m
Frequency and principle: 24...25 GHz, FMCW
Accuracy: 0.25 FS.
max. Pressure: 0.5 bar
max. Temperature: -40°C...+200°C
Outputs: 4...20 mA, HART, PROFIBUS PA
Supply: 24 VDC or 100...230 VAC
Approvals: CE, C-Tick, KC, FCC, Industry Canada, R&TTE, ATEX, CSA, FM, INMETRO, IECEx, GOST
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Range at ideal conditions: up to 100 m
Frequency and principle: 78...79 GHz, FMCW
Accuracy: 0.25 FS.
max. Pressure: up to 3 bar
max. Temperature: up to -40°C...+200°C
Outputs: 4...20 mA, HART, PROFIBUS PA
Supply: 24 VDC
Approvals: CE, C-Tick, KC, FCC, Industry Canada, R&TTE, ATEX, CSA, FM, INMETRO, IECEx, GOST, NEPSI
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Range at ideal conditions: 0.15...22.5 m
Accuracy: up to 0.1 % of insertion length or 2.5 mm
max. Pressure: -1...+431 bar
max. Temperature: -196°C...+427°C
Outputs: 4...20 mA, HART, SIMATIC PDM
Supply: 11...36 VDC
Approvals: CE, C-Tick, ATEX, CSA, FM, GOST-R, IECEx, SIL-2
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
